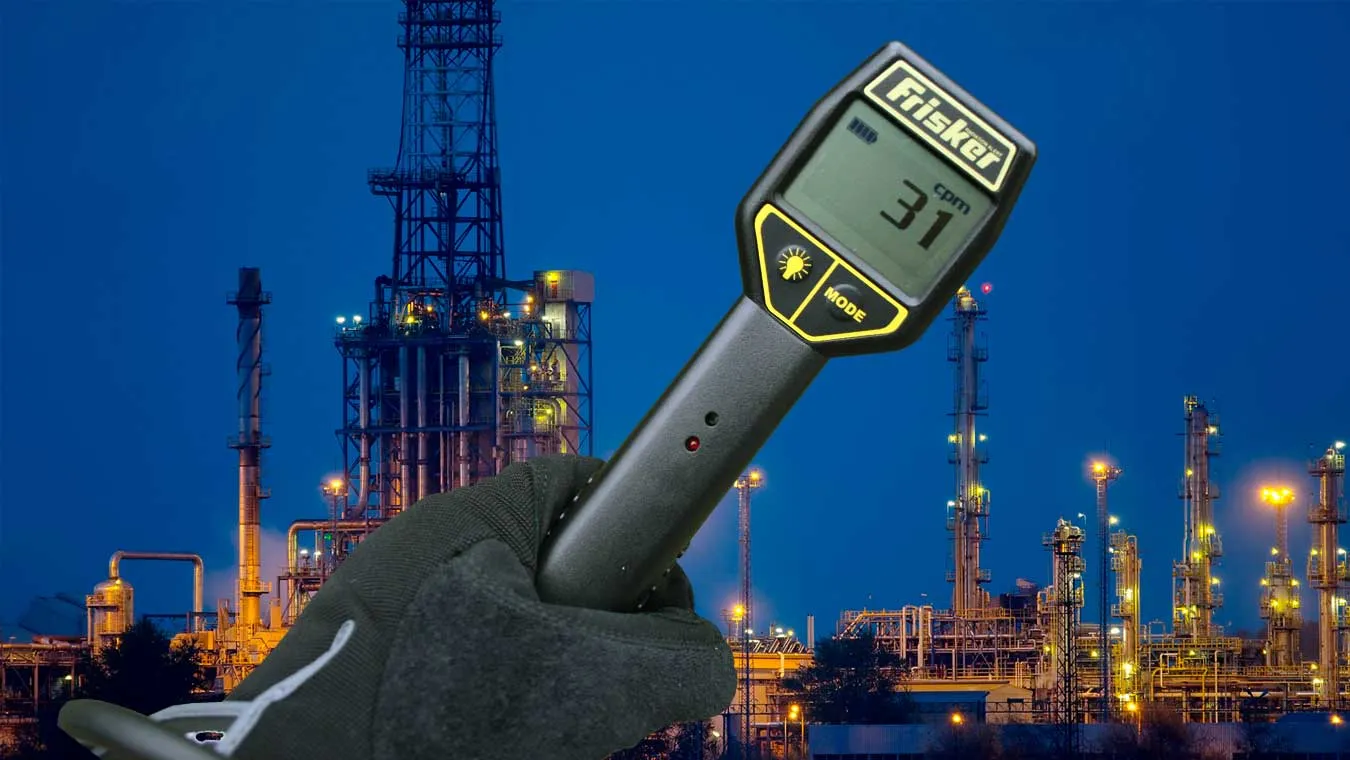

Sick of getting tripped up by cables? Want that free hand back? Tired of lugging around a meter the size of a lunch box? Presenting The Radiation Alert® Frisker. The Radiation Frisker detects alpha, beta, gamma, and X-ray. It has the ability to take readings in multiple different units of measure, customize alarm levels, and comes equipped with a backlit display.  The Frisker is a light weight, single-handed radiation contamination instrument that has been designed to meet the demands of today’s radiation personnel for leak testing, surface monitoring, sample screening, and personnel screening. By integrating the latest electronics with a proven and dependable Geiger Mueller detector, S.E. International has created a rugged, ergonomic Geiger counter that addresses a number of radiological applications.

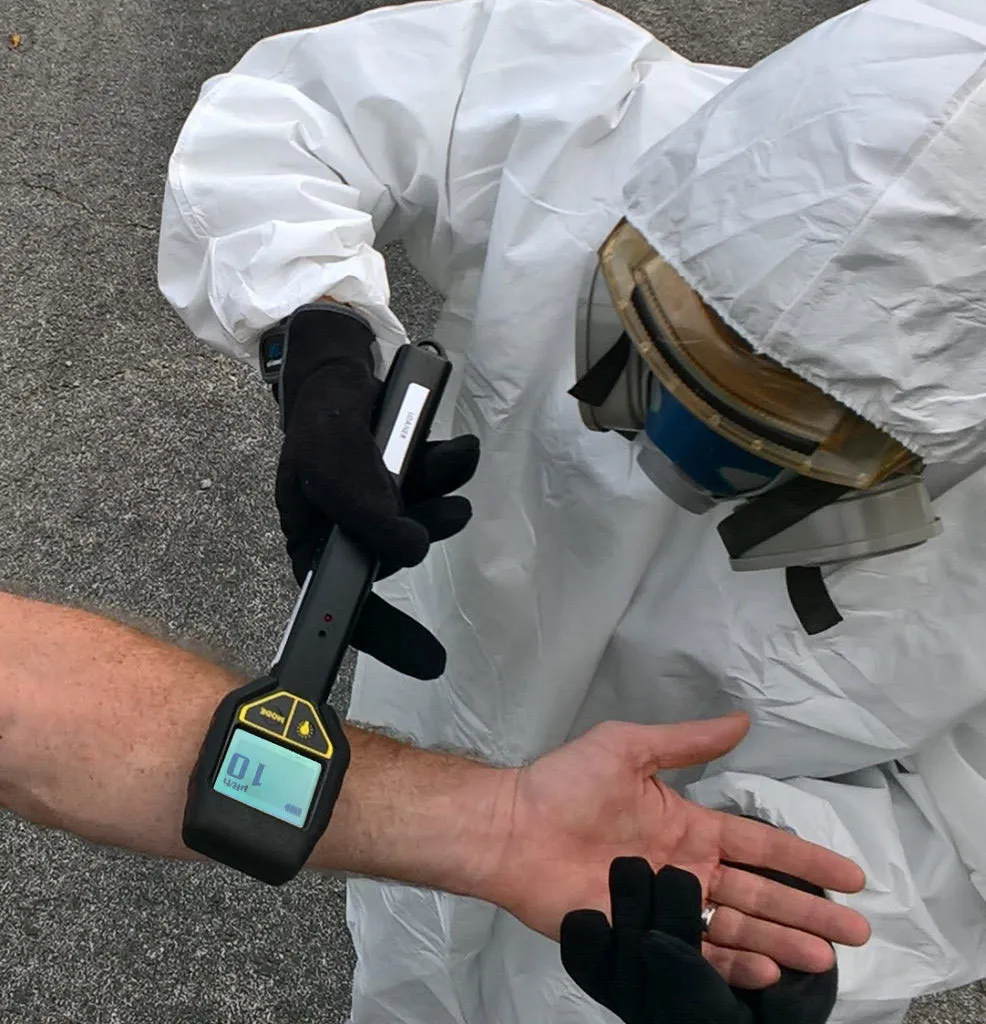

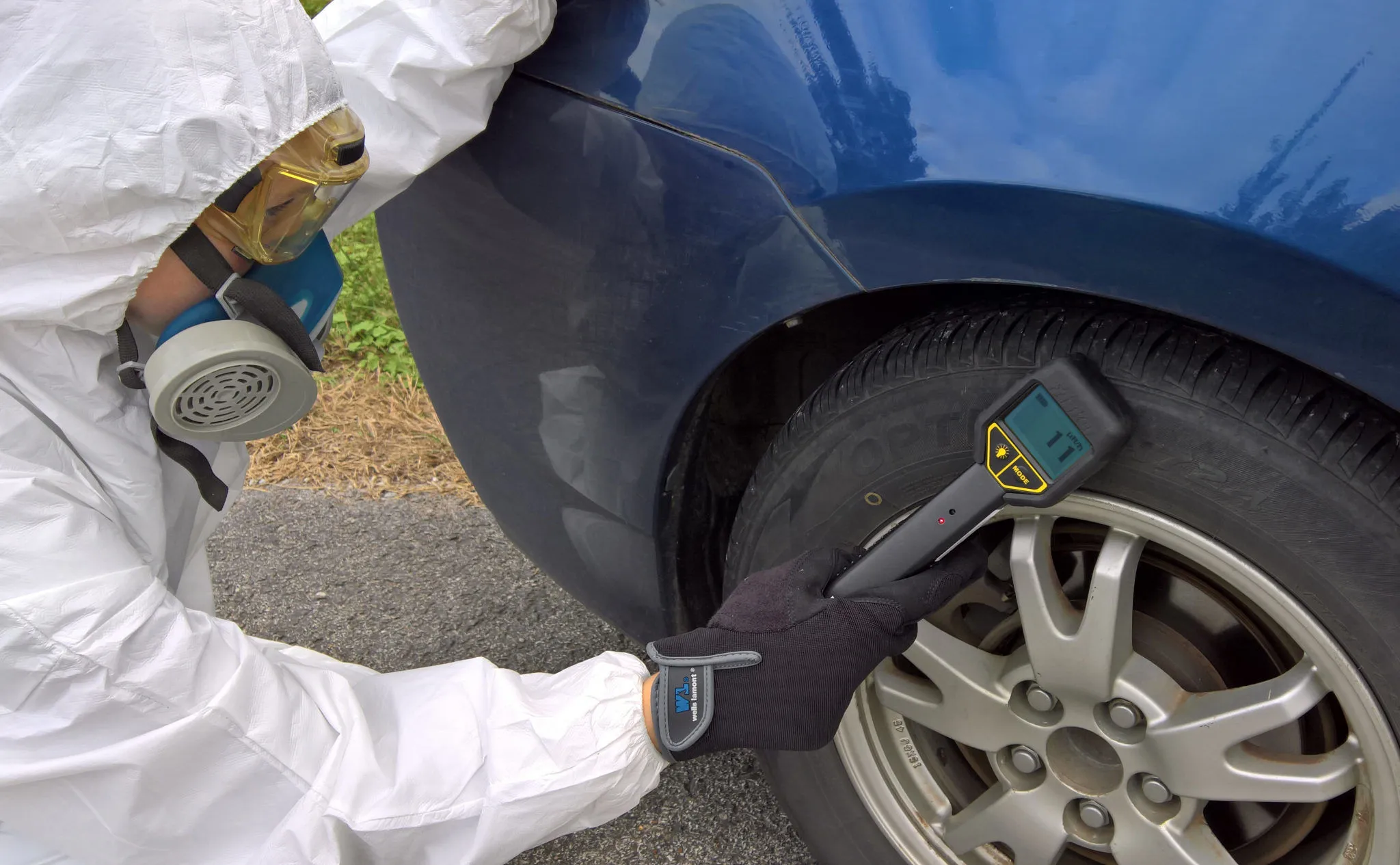

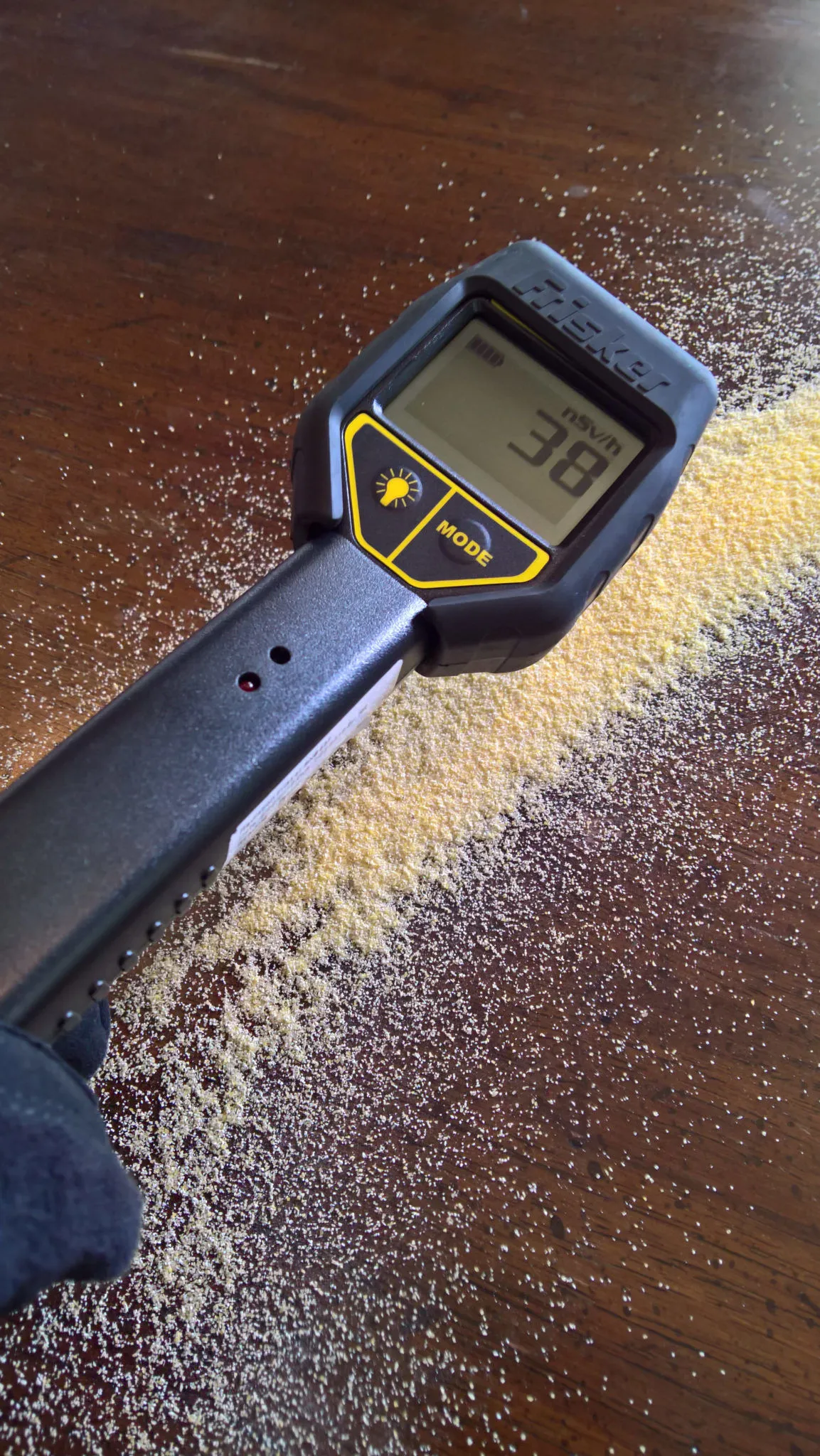

Applications & Uses: Screening personnel and objects, such as packages, surfaces, and clothing, Surveying for NORM (Naturally Occurring Radioactive Material) contamination, Gross wipe counting, Contamination surveys of packages, equipment, people, etc., Regulatory inspections, Low energy radionuclide detection

Contact For Pricing and Availability


Specifications

Detector

radiation_icon_bllack alpha_icon_black beta_icon_black gamma_icon_black x-ray_icon_black
Halogen-quenched GM tube with thin mica end window. Mica window density 1.5-2.0 mg/cm2. Effective diameter of window is 45 mm (1.77 in.). Side wall is .012 inch thick.

Operating Range

Up to 50 mR/h. Instrument begins readings in µR/h and changes to mR/h at 1000 µR/h

Up to 500 µSv/h. Instrument begins reading in nSv/h and changes to µSv/h at 1000 nSv/h

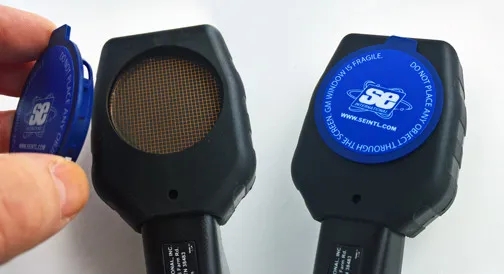

Radiation Frisker Detector Window


Energy Sensitivity

Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma down to 10 KeV through the detector window. 3600 CPM/mR/hr (137Cs). Smallest detectable level for 125I is .02 µCi at contact.

Radiation Frisker Energy Response

Accuracy

Reference to Cs137
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration

Anti-Saturation

Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.

Included with Frisker

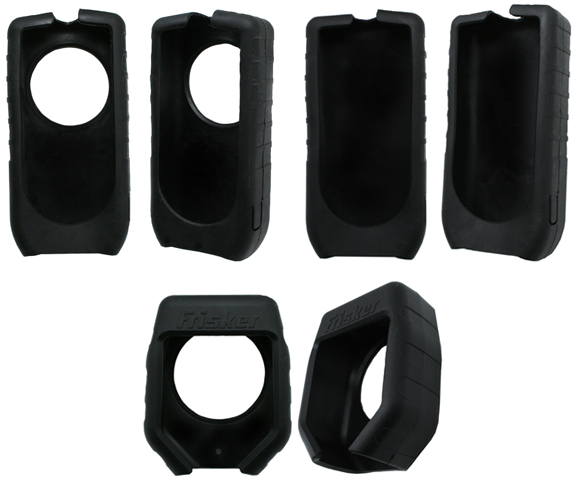

Carrying Case Extreme Boot

 Display

Backlit liquid crystal display with mode indicators.

Alert

Pulsating beeper sounds the alert. Adjustable alert levels are used for
µR/hr / CPM, and nSv/hr / CPS.

Count Light

Red LED flashes with each count.

Audio Indicator

Sounds with each count (can be switched off for silent operation)

Power Requirements

Two (2) AA alkaline batteries (included). Battery life is approx. 800 hours at normal background radiation levels.

Temperature Range

-10° to +50°C (14° to 122°F)

Humidity

10% to 70% Non-Condensing.

Weight

217 g (7.7 oz.)

Size

276 x 44 x 64 mm (10.88 x 1.75 x 2.5 in.)

Includes

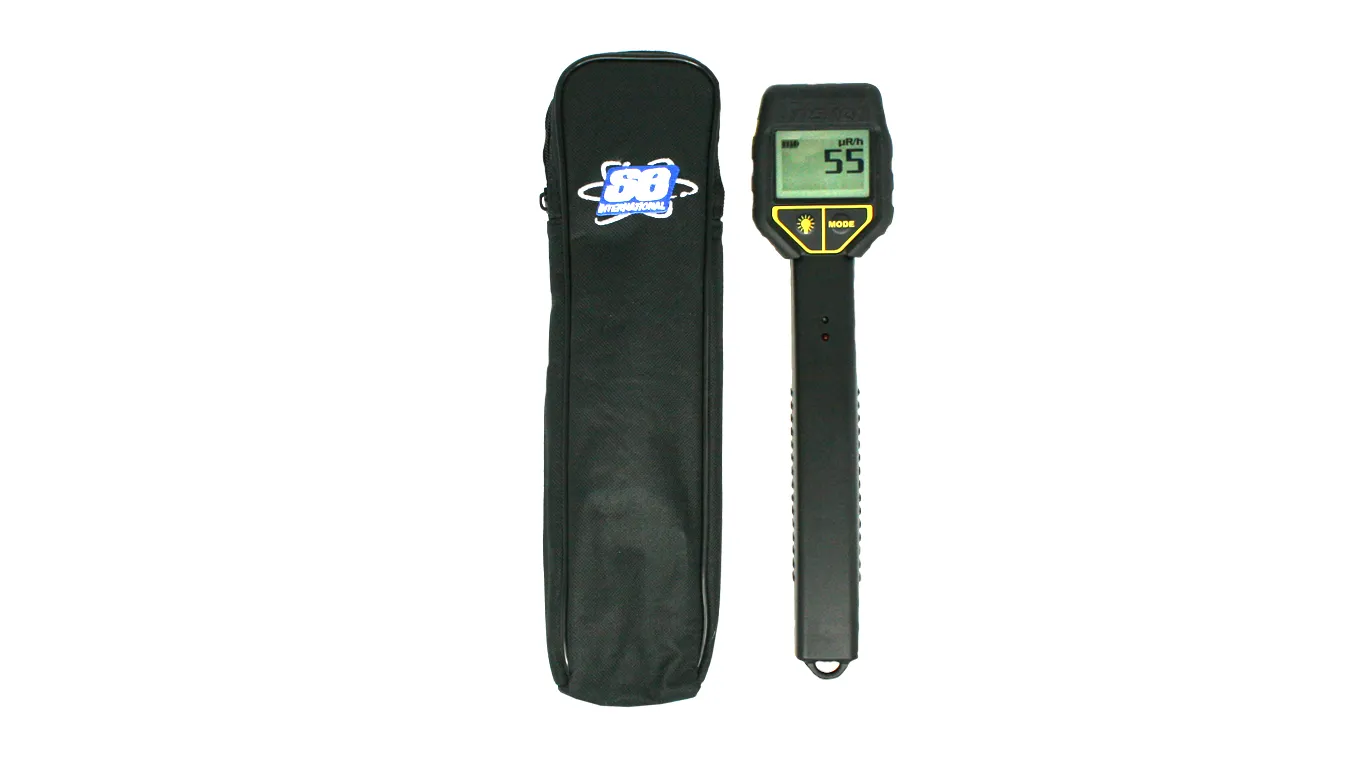

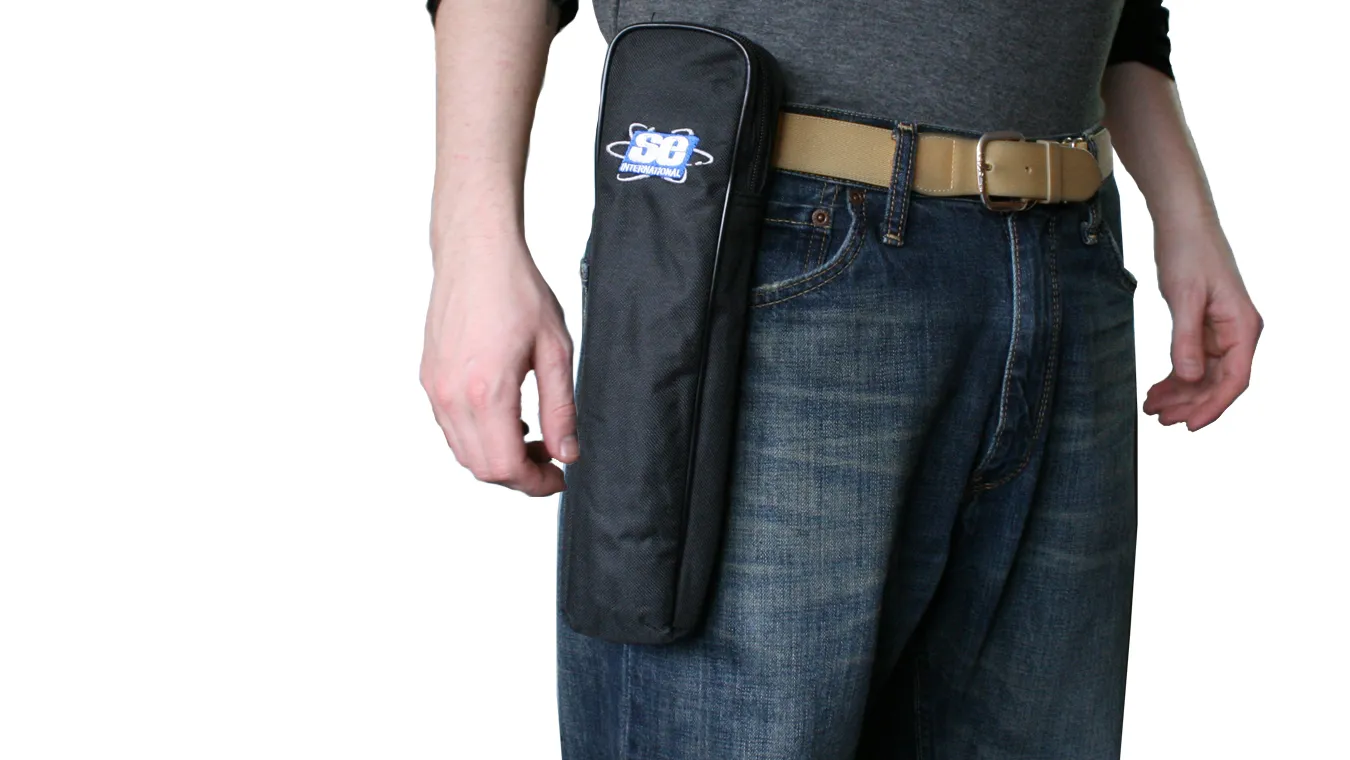

Carrying Case, Lanyard, Batteries, and Protective Boot. Protective boot fits most industry standard dose rate and compensation filters.

Options

NIST Calibration


Limited Warranty

1 year limited warranty
