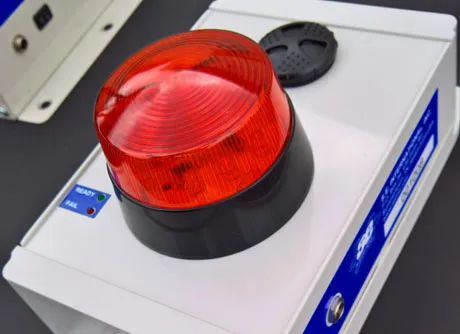

To provide secondary or backup alerts in other areas for the Radiation Alert® Area Monitor, connect the optional remote alarm for additional coverage.

The Area Monitor Remote Alarm has six convenient mounting holes for wall installation. Before mounting the Area Monitor Remote Alarm to the wall, make sure that the 6 ft. power converter cord will reach the nearest power outlet. The Remote Alarm connects to the Base Unit via an included 50 ft. DB9 Serial Cable.

The Area Monitor Remote Alarm connects to the Area Monitor base unit via a DB9 serial connector. The Remote Alarm is controlled by the Area Monitor's built in 3 alarm relays.

Audio Indicators

Siren is 99db at 24in.

Light indicators

Red and Green LED Strobe Flash Rate: 80-100 / min

Connectors

50ft Serial DB9 Cable, DB9 connector end is 1.2in x .7in

Temperature Range

-10° to +50°C (14° to 122°F)

Humidity

10% to 70% Non-Condensing.

Power

12Volt DC Power - Included

Enclosure

ABS Plastic

Size

8.7in x 4.7in x 4.1in

Weight

400g (0.9 lbs.)

Limited Warranty

1 year limited warranty
