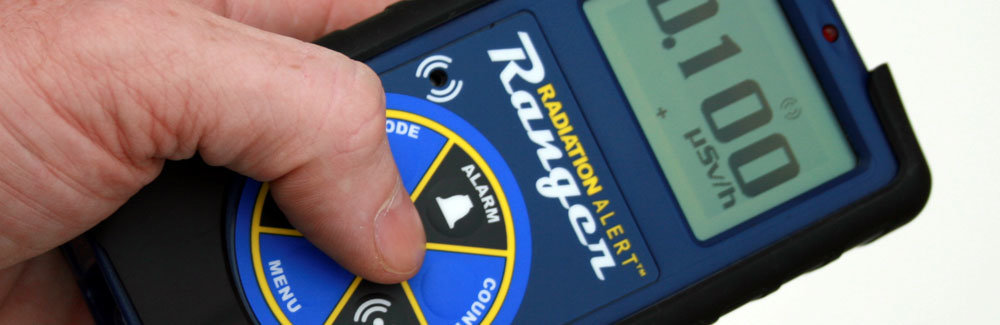

The Radiation Alert@ Ranger and Ranger EXP share the same operating ranges and offer a fast response with the larger tube, as well and a greater sensitivity to alphas with the larger end window. The Monitor 200 has a smaller end window, still has the ability to detect alpha and affords a little more ruggedness. The Monitor 1000EC has a linear response and a higher ranger with its energy compensated tube. The GammaView Scintillation Detector.

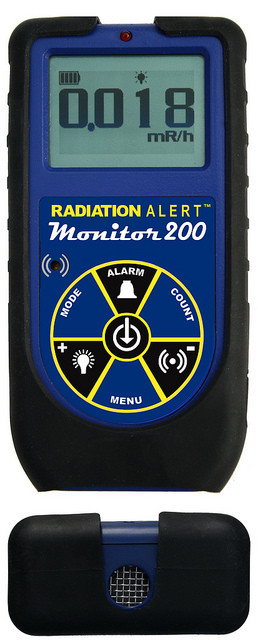

Monitor 200 Detector Window Alpha, Beta, Gamma, X-Ray Detection

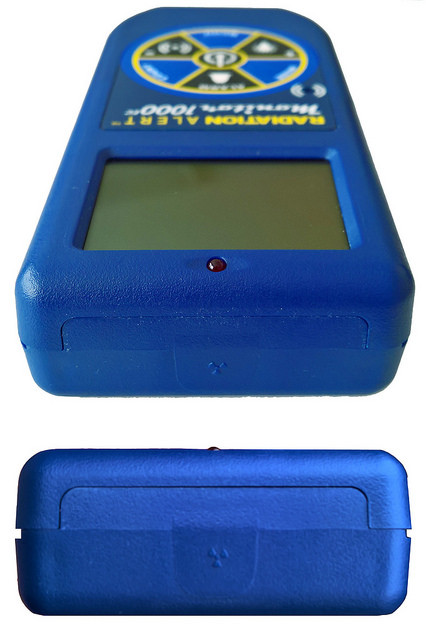

Monitor 1000EC Detector Monitor 1000EC

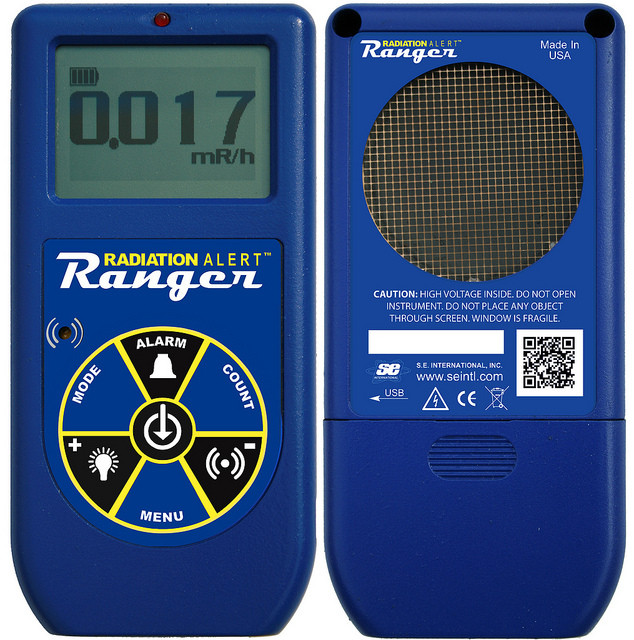

Ranger Detector Window Alpha, Beta, Gamma, X-Ray Detection
Ranger EXP External Detector Window Alpha, Beta, Gamma, X-Ray Detection

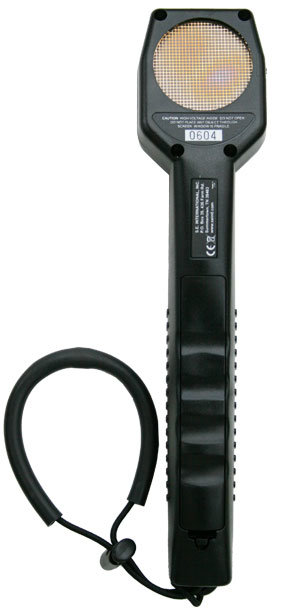

Radiation Frisker Detector Window Alpha, Beta, Gamma. X-Ray Detector

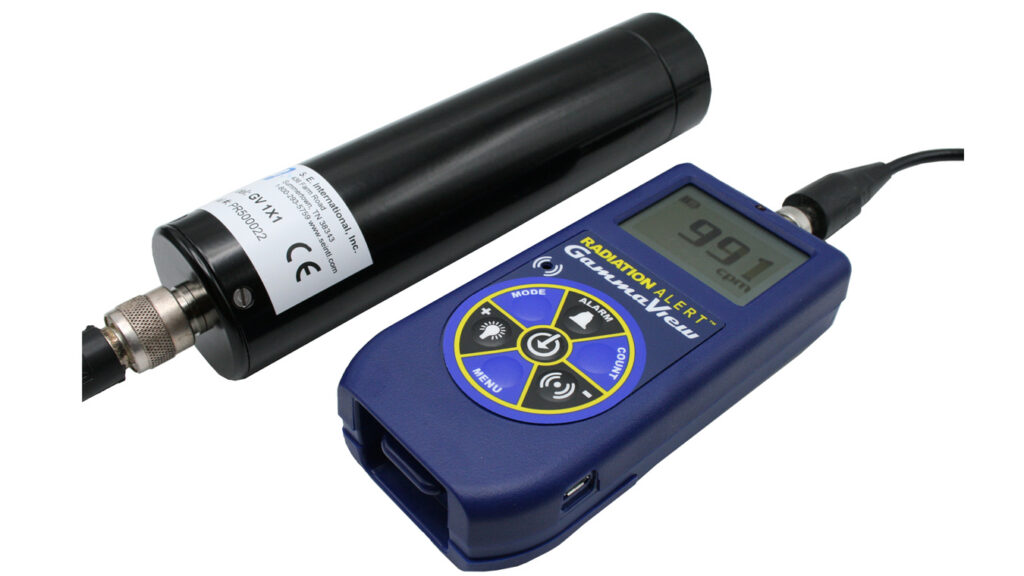

Radiation Alert GammaView Scintillation Detector Gamma, X-Ray
The Energy Response determines how well it responds to different radiation via the window or the side wall of the detector. Compare radiation detector respond graphs below.

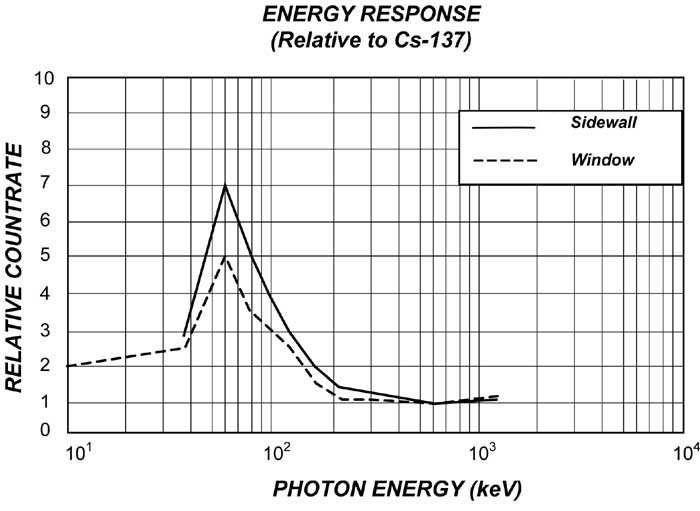

Monitor 200 & Monitor 4 Energy Response To Gamma Cs137 Monitor 200 & Monitor 4 Energy Response To Gamma Cs137

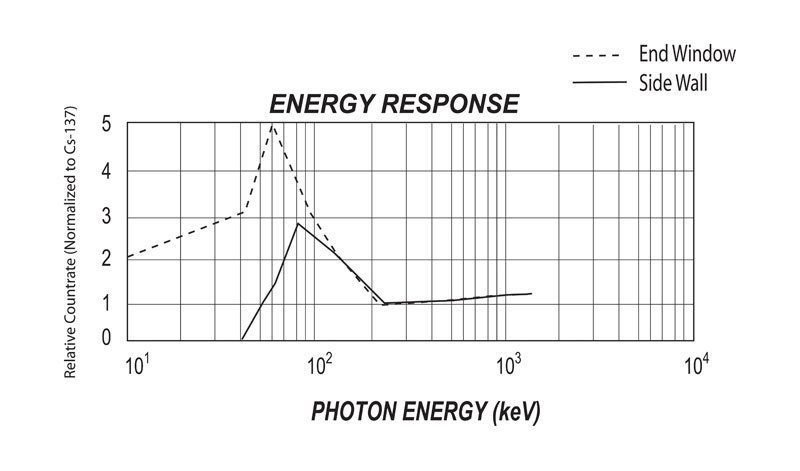

Ranger, Ranger EXP, & Frisker Energy Response To Gamma Cs137

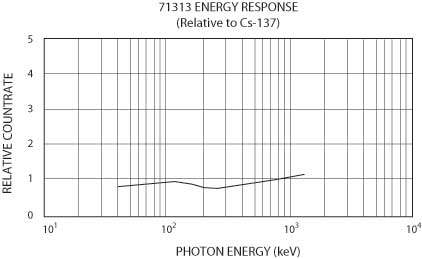

Monitor 100EC, Monitor MC1K, & AM-71313 Energy Response

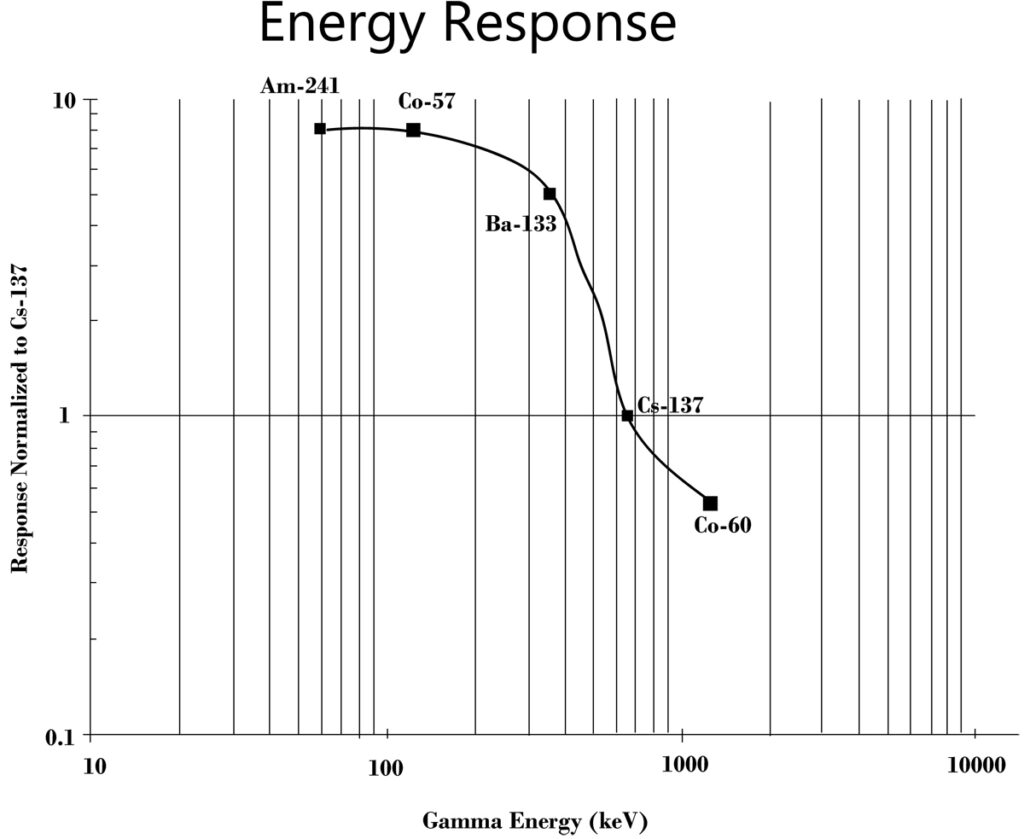

GammaView 1×1 NaI Scintillation Probe. 2.5 cm (1 in) dia. x 2.5 cm (1 in) thick Energy Response
Please, feel free to contact us if you need assistance finding the right detector for the situation at hand.
