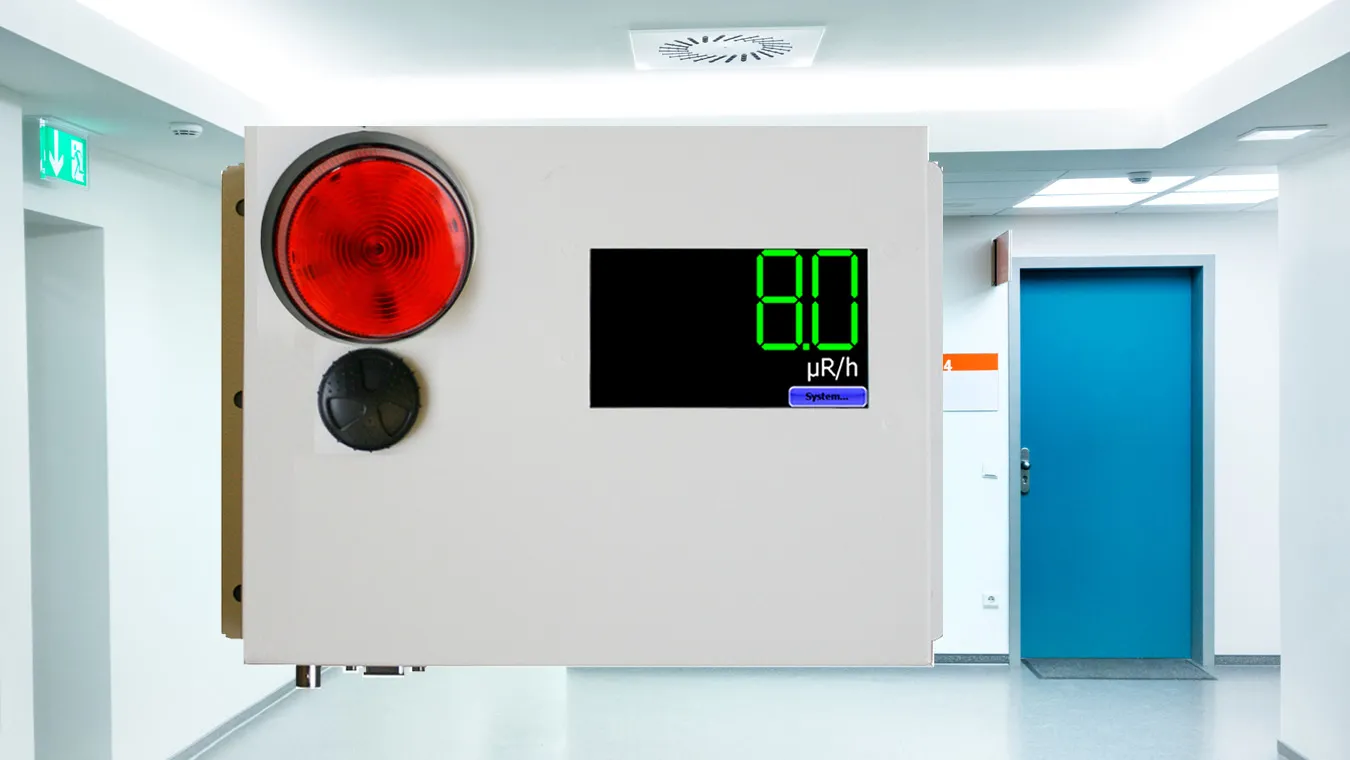

Area Monitor PA

The Radiation Alert® Area Monitor is one of the most user friendly, all inclusive, state of the art radiation area monitors available. The easy to use interface is an intelligent resistive touch screen display featuring a large five digit LED readout. The AM-PA includes the base unit and remote alarm with sound turned off for monitoring sensitive areas.

It comes with an internal detector and free software for monitoring every Radiation Alert® Area Monitor on your network. Includes user selectable warning indicators for low and high radiation alarm levels, and detector failure. Setup email and text alerts to receive alarms while on the go. All the settings are stored internally, even when power is disconnected. All units come with a Certificate of Conformance. NIST Source calibrations available upon request.

Operation Manuals:

Operation Manual English

Applications & Uses

Room monitoring for Hospitals, X-Ray machines, Accelerators, Laboratories, etc.

Detector

LND 7149 Energy Compensated GM Detector

Custom Probe Options Available. Tell us about your application and we can recommend the best probe options for your needs.

Energy Sensitivity

1.5 cps/mR/hr

AM-7149 Energy Response

Operating Range

0.01 to 16,000 mR/hr (0.1 to 160,000 µSv/hr)

Linearity

NIST Calibrated readings within 10% of true value with detector connected.

*ALL NIST CALIBRATIONS ARE ONLY RATED to 0.1 to 1,000 mR/hr – (0.1 to 10,000 µSv/hr) However, the instrument will work to the stated operation range above.

Touch Screen Display

4.3 inch TFT 480×272 touch screen display with user friendly Programmable Units of Measurement and Audio and Visual Alarms. 5-digit LED display with 3 cm (1.5 in.) character height. 65K true colors capable of displaying full color images, animations, icons.

Base Unit Settings

Alarms and Calibration Information can be accessed through the Touch Screen Display or through the software.

Base Units

Can be set in µR/hr, mR/hr, µSv/hr, mSv/hr, CPM, kCPM, CPS, kCPS

Indicators

Ultra-Bright Strobe
Can trigger up to three relays with DB-9 serial connection
USB VCP for computer data logging, can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote)

Ethernet

10 Base-T connection for use with remote software for alarm indication and acknowledgment (Silence by remote)

High Voltage

User adjustable from 200 to 1200 volts

Audio

Main Unit- Sound turned off for monitoring sensitive areas. You can always turn the sound on if desired.
Remote Alarm- Audible Alarm is switched off.

Power

12 VDC wall mount adapter included

Battery Life

Typically 6 hours in non-alarm condition; 5 hours in alarm condition

Battery Charger

SLA Battery is continuously trickle charged when the instrument is connected to line power and turned on

Temperature Range

-10° to +50°C (14° to 122°F)

Humidity

10% to 70% Non-Condensing.

Size

Base Unit 20.3 x 28.6 x 10.8 cm (8 x 11.25 x 4.25 in.)

Construction

Easy mount steel enclosure

Includes

Management software for use with networked area monitors, Base Unit, Power Supply, External Strobe with 50′ cable.

Options

NIST Calibration

Limited Warranty

1 year limited warranty

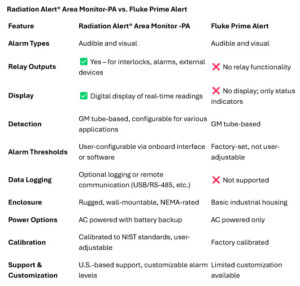

AM PA Comparision

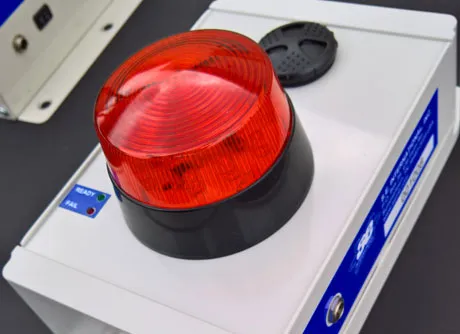

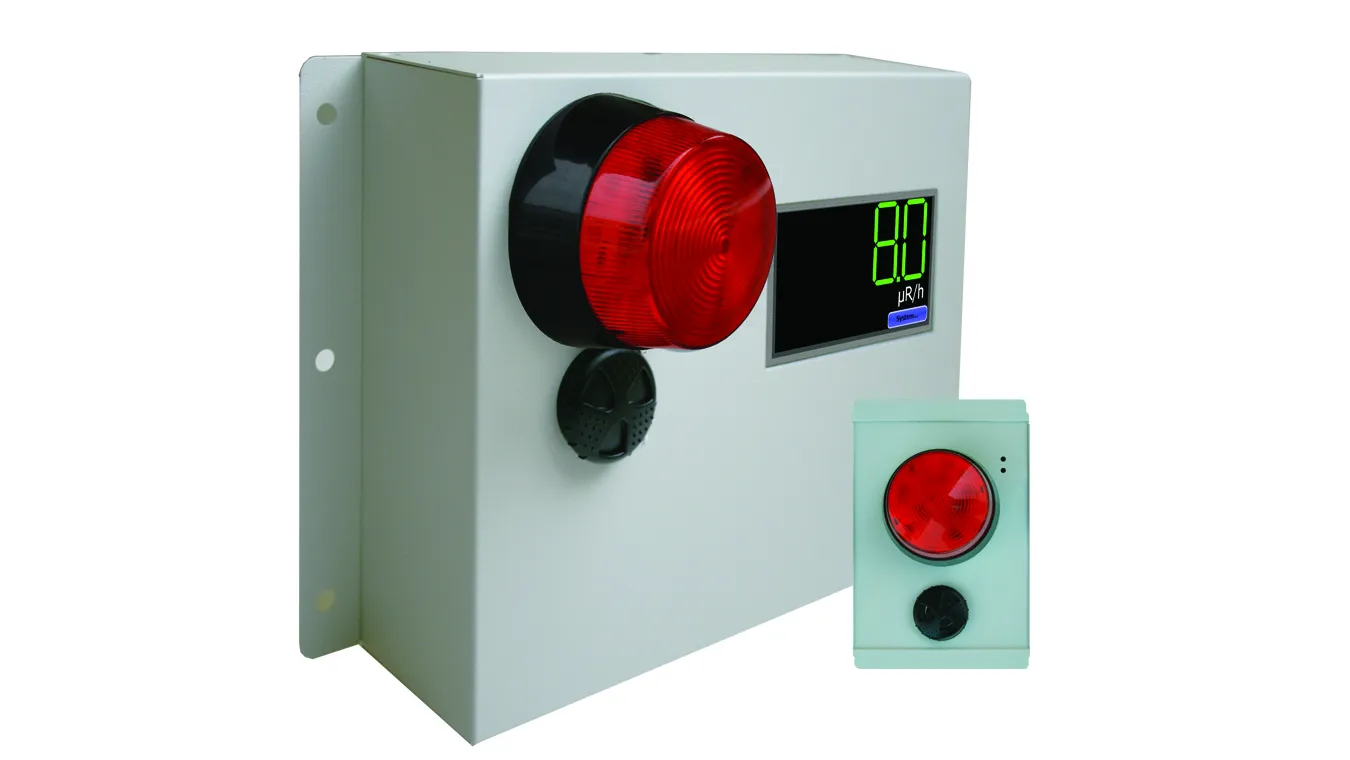

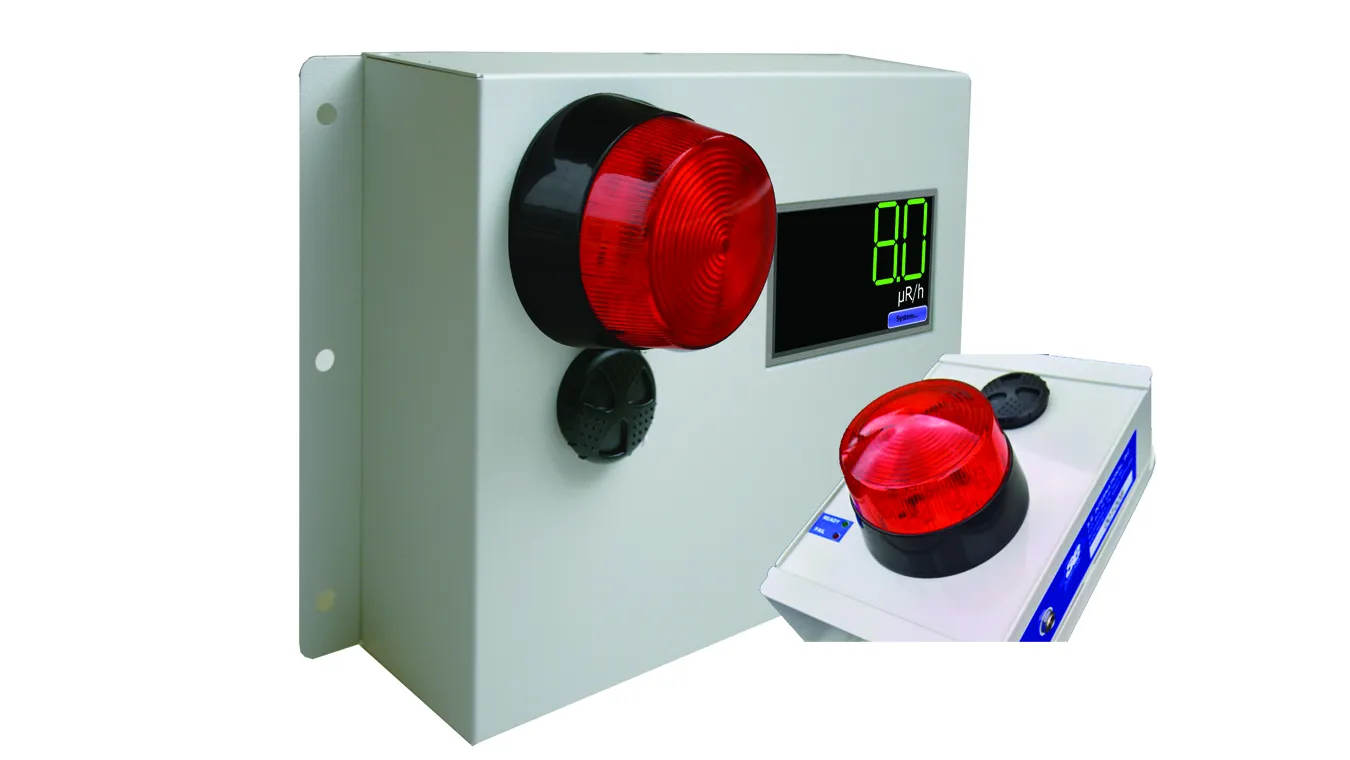

Remote Alarm for Area Monitor

Remote Alarm for Area Monitor
