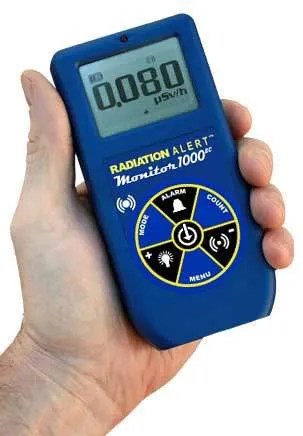

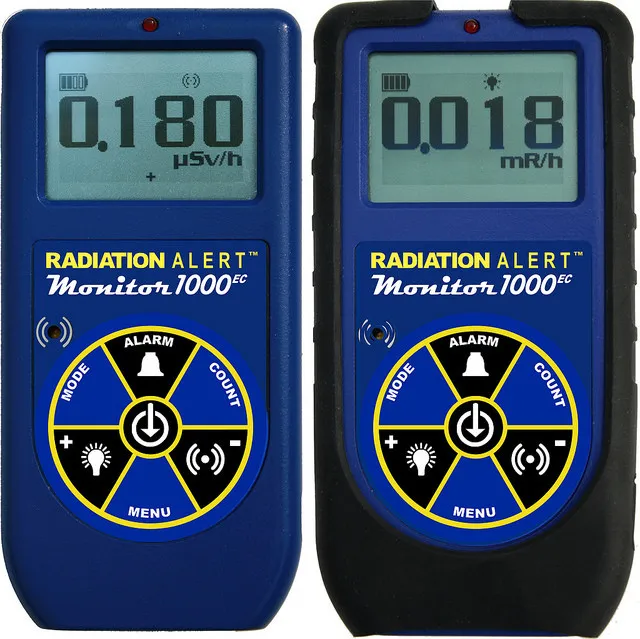

Radiation Alert Monitor 1000EC

Energy‑Compensated Gamma & X‑Ray Radiation Detector

The Radiation Alert® Monitor 1000EC is a professional energy‑compensated radiation detector designed for accurate measurement of gamma and X‑ray radiation across a wide range of applications. Its energy‑compensated response ensures reliable dose‑rate measurements, making it well suited for radiation safety, survey work, and compliance monitoring.

Accurate Energy‑Compensated Measurements

The Monitor 1000EC provides radiation readings in multiple selectable units, allowing users to view results in the format required for their application. Available measurement modes include:

  • Counts Per Minute (CPM)
  • Counts Per Second (CPS)
  • µSv/hr
  • mR/hr
  • Accumulated Total Counts

This versatility makes the Monitor 1000EC ideal for most applications requiring an energy‑compensated gamma and X‑ray detector.

Clear Alerts & User‑Friendly Operation

For enhanced situational awareness, the Monitor 1000EC features a red count indicator light and an audible beeper that sounds with each detected event. An adjustable counting timer and selectable alarm thresholds allow the instrument to be tailored to specific operational or safety requirements.

Data Logging with Free Observer USB Software

Included with the Monitor 1000EC is Free Observer USB Software (Windows® compatible), enabling comprehensive data management and reporting. The software supports readings in Total Counts, CPM, CPS, µR/hr, mR/hr, and µSv/hr, and allows users to:

  • Collect and log radiation data
  • Configure alarm setpoints
  • Perform timed counts
  • Set calibration dates and detector settings
  • Generate professional reports
  • Download and manage stored survey data
  • Configure computer‑based alarms

Optional Bluetooth® Connectivity

For enhanced flexibility, the optional Bluetooth® module enables seamless integration with the free Radiation Alert® Observer BLE app available on the Google Play Store. When connected, users can:

  • Display real‑time radiation readings with descriptions
  • Label samples and survey measurements
  • Perform timed counts
  • Append GPS location data
  • Save, send, and share survey files
  • Mirror detector alarms directly on an Android device

This mobile capability extends monitoring and reporting beyond the instrument, supporting efficient field and facility operations.

Applications & Uses

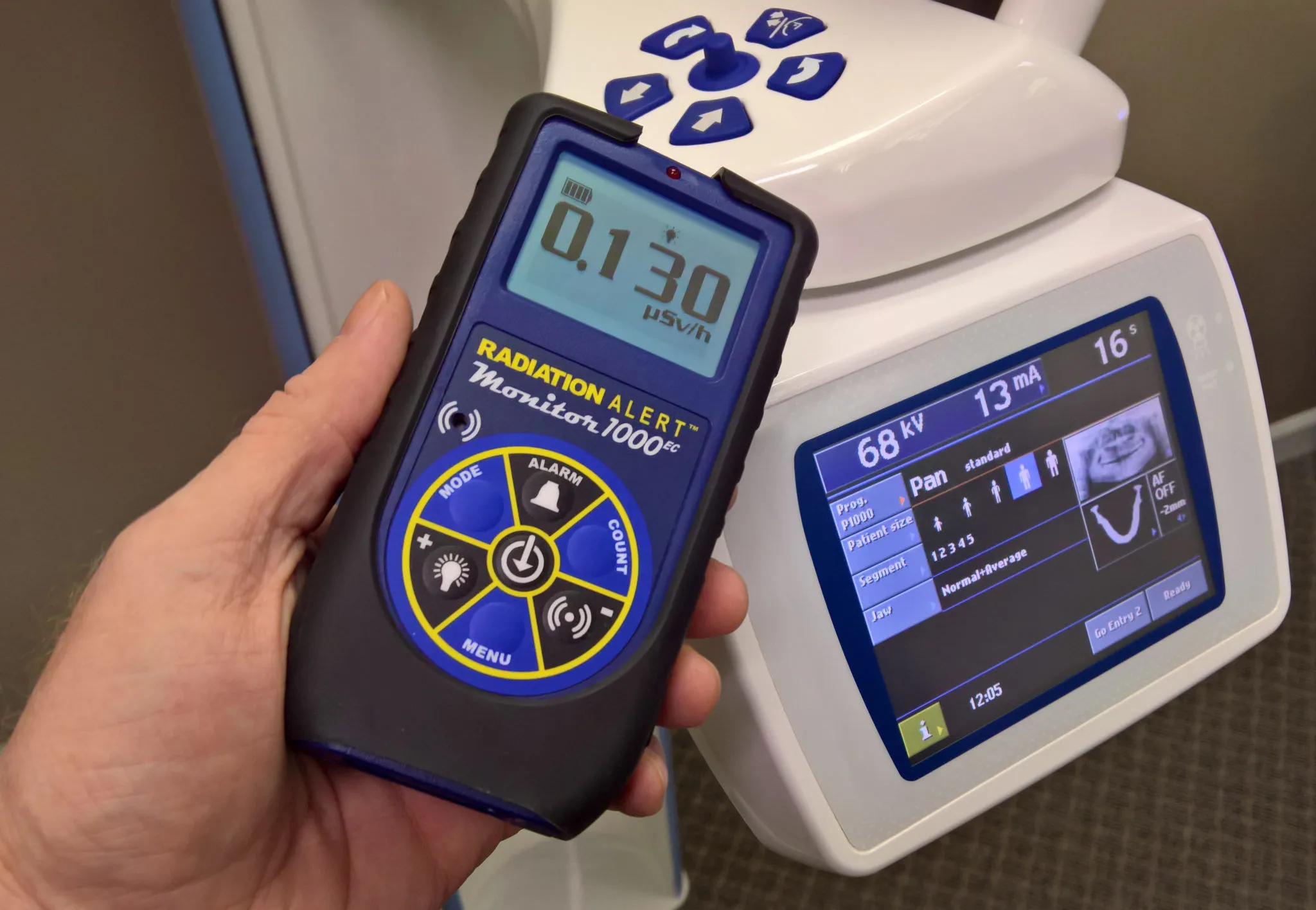

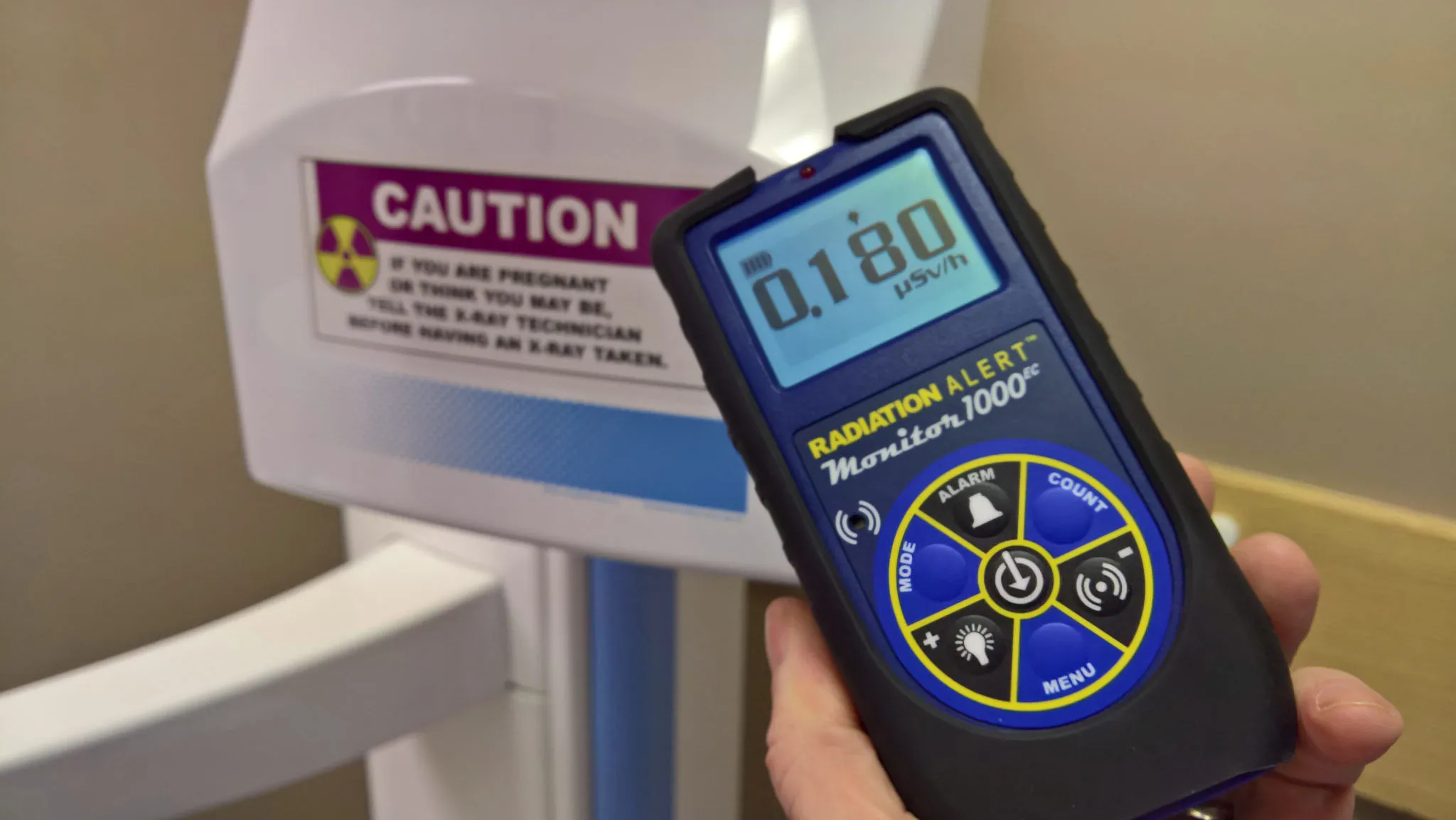

X-ray chamber inspection, Expanded Range up to 1000 mR/hr, Linear Response needs with Energy Compensation, Checking accelerator & x-ray shielding for leakage, Checking industrial gauges, such as moisture, density, or level gauges containing Cesium-137, Locating lost sources, Personal protection, Linear response detection applications, General surveying

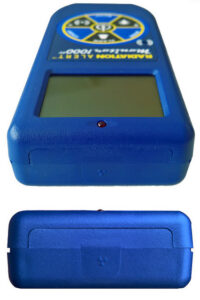

Analog Radiation Detector Comparison

Specifications

Detector

Energy Compensated Halogen-quenched GM tube.

Operating

mR/hr – .001 (1µR) to 1000 mR/hr
µSv/hr – .01 to 10000
CPM – 0 to 450,000
CPS – 0 to 7500
Total Counts – 1 to 9,999,000 counts

Energy Sensitivity

450 CPM/mR/hr referenced to Cs137. Detects gamma and x-rays down to 40 keV. Response is flat from 40 keV up.

Monitor 100EC, Monitor MC1K, & AM-71313 Energy Response

Accuracy

(Referenced to Cs137)
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional

Anti-Saturation

Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.

Selectable Alert Set Range

mR/hr .001 – 1000 and CPM 1 – 450,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.

Display

Graphic LCD with Backlight.

Outputs

USB for use with Free Observer USB Software for PCs
Bluetooth Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App

Count Light

Red LED flashes with each count.

Audio Indicator

Sounds with each count (can be switched off for silent operation)

Power Requirements

USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.

Temperature Range

-10° to +50°C (14° to 122°F)

Humidity

10% to 70% Non-Condensing.

Size

140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)

Weight

204 g (0.45 lbs.)

Includes

Carrying Case, Rubber Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software Download, Observer BLE App, Certificate of Conformance

Options

Water Resistant Case, NIST Calibration

Limited Warranty

1 year limited warranty

Included with Monitor 1000EC

Radiation Alert® Carrying Cases

Radiation Alert® Carrying Cases
Radiation Alert® Detector Stands

Radiation Alert® Detector Stands
Radiation Alert® Observer USB Software

Radiation Alert® Observer USB Software
Radiation Alert® Rubber Boot

Radiation Alert® Rubber Boot

Options for Monitor 1000EC

Protective Water-Resistant case

Protective Water-Resistant case
