Radiation Alert® Ranger EXP

Handheld NORM & Low‑Level Radiation Survey Meter

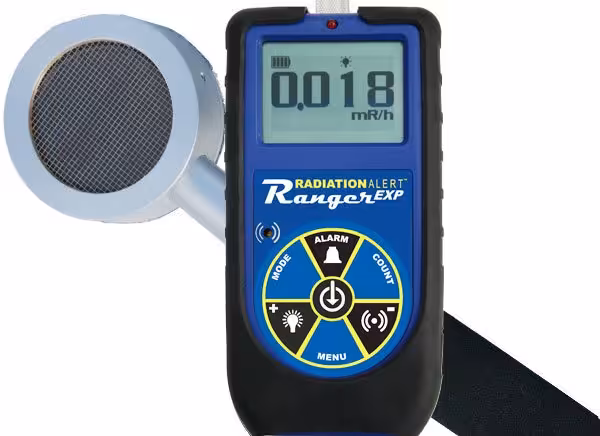

The Radiation Alert Ranger® EXP is a professional handheld nuclear radiation survey meter engineered for enhanced detection of Naturally Occurring Radioactive Material (NORM) and low‑level radiation. Designed for use in industrial facilities, environmental monitoring, laboratories, and field operations, it delivers laboratory‑grade performance in a compact, portable form.

Advanced Radiation Detection Capabilities

The Radiation Alert Ranger® EXP provides high‑sensitivity detection of alpha, beta, gamma, and X‑ray radiation, with optimized response to low‑energy and naturally occurring radioactive sources. Built‑in efficiencies for common isotopes allow the instrument to calculate radiation activity directly in Becquerels (Bq) and Disintegrations Per Minute (DPM), eliminating the need for manual conversions and supporting accurate contamination and survey assessments.

Portable, User‑Friendly Design

Designed for real‑world use, the Ranger® EXP features a backlit digital LCD display, a red count indicator light, and an audible beeper that signals each detected event. These visual and audible indicators provide immediate feedback and improve situational awareness in both indoor and outdoor environments.

User‑adjustable features include:

  • Selectable alarm thresholds
  • Adjustable counting timer

These controls allow the instrument to be tailored to specific survey protocols, safety requirements, or regulatory workflows.

Data Logging & Connectivity

The Radiation Alert Ranger® EXP includes Free Observer USB Software (Windows compatible), enabling users to download, store, and review radiation measurement data, as well as configure alarms through a computer interface.

For expanded functionality, an optional Bluetooth® module enables wireless connection to the Radiation Alert® Observer BLE Android app. Through the app, users can:

  • View real‑time radiation measurements with descriptions
  • Perform timed counts
  • Add GPS location data to surveys
  • Save, share, and export survey files
  • Mirror instrument alarms on an Android device

Applications & Uses

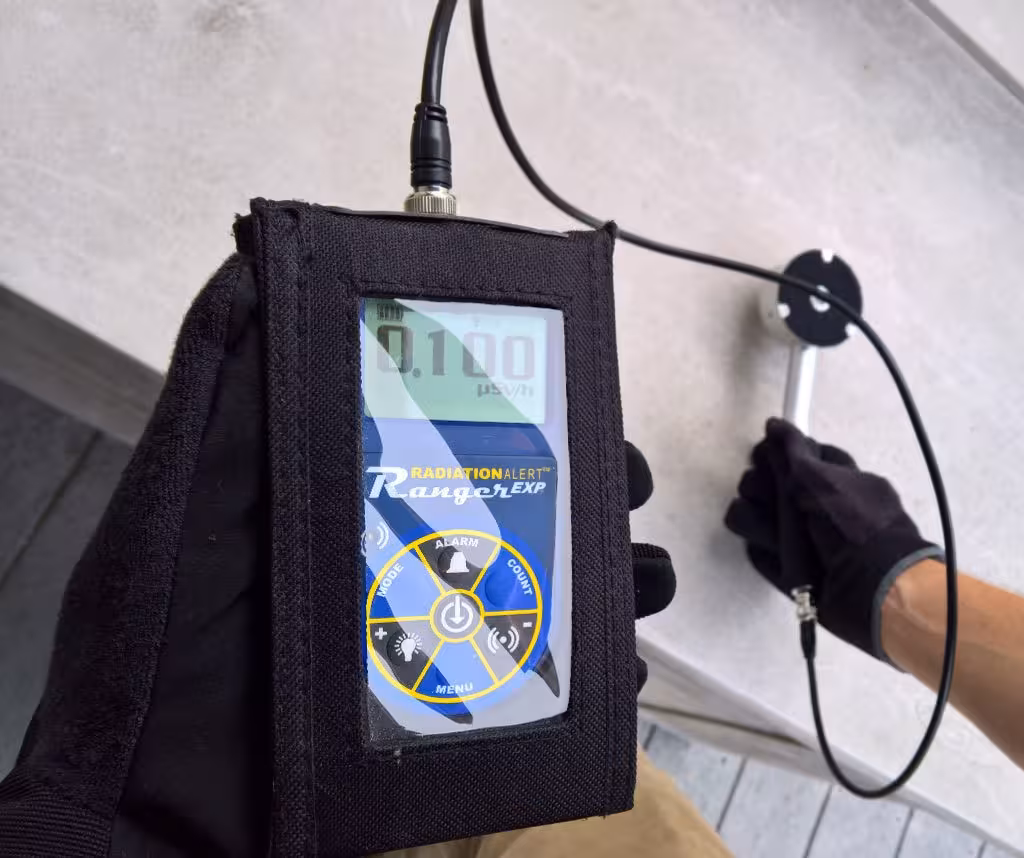

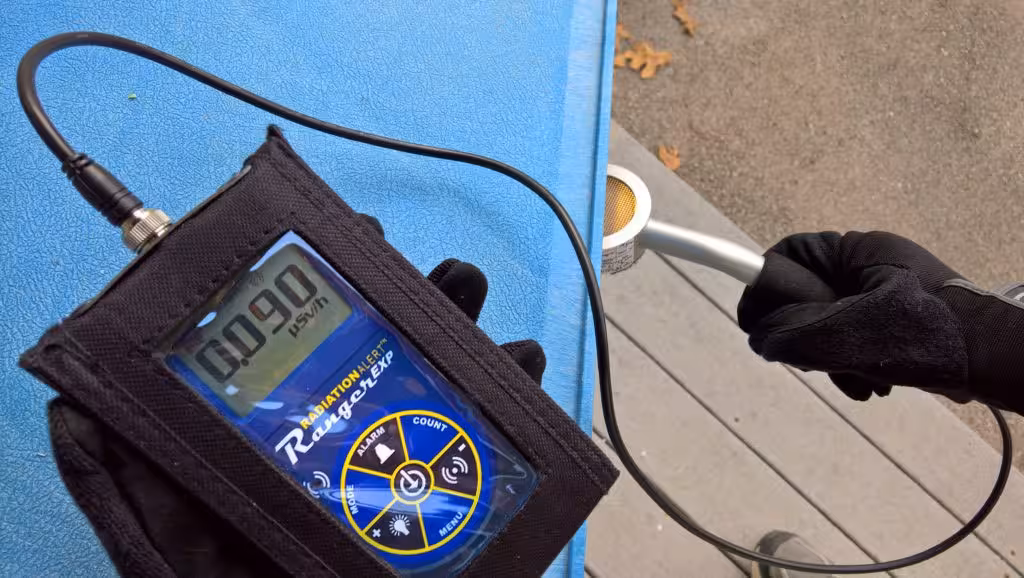

Surveying for NORM (Naturally Occurring Radioactive Material) contamination, Gross wipe counting, Contamination surveys of packages, equipment, people, etc., Regulatory inspections, Scrap Metal Screening, Low energy radionuclide detection

Digital Radiation Detector Comparison

Specifications

Detector

Here, are some features of the radiation detector device that is worth mentioning. RAP-RS2 Probe – External Probe Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.75 in.).

Operating Range

mR/hr – .001 (1µR) to 100
CPM – 0 to 350,000
µSv/hr – .01 to 1000
CPS – 0 to 5000
Total Counts- 1 to 9,999,000 counts

Energy Sensitivity

Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma down to 10 KeV through the detector window. 3340 CPM/mR/hr (137Cs). Smallest detectable level for 125I is .02 µCi at contact.

Ranger, Ranger EXP, & Frisker Energy Response

Built-In Efficiencies

Sulfur (35S), Strontium (90Sr/y), Cesium (137Cs), Phosphorus (32P), Carbon (14C), Iodine (131I), Cobalt (60Co), and Alpha

Accuracy

Reference to Cs137
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional

Selectable Alert Settings

mR/hr .001 – 100 and CPM 1 – 350,000. 70db @ 1m. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. Alarm will sound when in Timer Mode when set alarm threshold is reached.

Anti-Saturation

Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.

Averaging Periods

This Radiation detector display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.

Display

Graphic LCD with Backlight

Outputs


USB for use with Free Observer USB Software for PCsBluetooth Option: Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App

Count Light

Red LED flashes with each radiation event.

Audio Indicator

Internally mounted beeper (can be switched off for silent operation)

Power Requirements

USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.

Temperature Range

-10° to +50°C (14° to 122°F)

Humidity

10% to 70% Non-Condensing.

Size

Base Unit: 140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)
Probe: 260 X 70 X 25 mm (10.25 X 2.75 X 1 in.)
Cable length 3′

Weight

570 g (1.25 lbs.)

Includes

RAP-RS2 External GM Probe, 3 ft BNC Cable, Carrying Case, Rubber Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software, Observer BLE App, Certificate of Conformance

Options

NIST Calibration,  Radiation Response Kit
Bluetooth module available for use with Obsever BLE software and Rad Responder

Limited Warranty

1 year limited warranty
