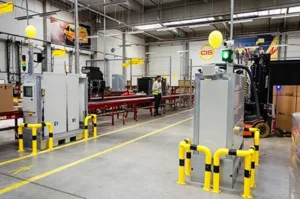

The detection system is equipped with two 40 L scintillation detectors which effectively detect radioactive material located or hidden in the cargo space of the vehicle which transporting scrap metal for processing. The system ensures a continuous inspection of vehicles passing through the detection gate. In the event of detecting a source of ionizing radiation, the operator can take rapid action in accordance with applicable legislation.
• Compliant with IEC 62022:2004 standard • Modular system, different detector configurations can be used • Fully automated • Ensure no radioactive source enters the premises • Can be connected to a camera system for reading vehicle registration plates
Applications & Uses: Radiation inspection of vehicles entering and leaving a facility
Contact For Pricing and Availability
Specifications
Detector
2x 40L plastic scintillation detectors
The minimum detectable activity (MDA)
Radionuclide Activity
Co-60 3 µCi
Energy Sensitivity
50 keV - 2 MeV
Optimal Panel-to Panel Distance
12 Feet
Recommended Maximum Speed
5 MPH
Alarms
Sound and visual (red light indicator or traffic light indicator)
Power Requirements
120V 60Hz
Environmental Protection
IP65
Temperature Range
From 22° F - 133° F (30°C to + 55°C)
Humidity
93% (non-condensing)

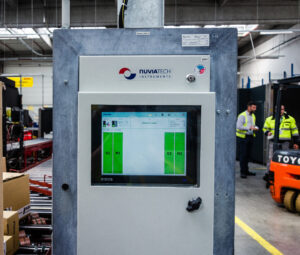

Control Unit
Base controller and embedded PC
 |
 |
Software
NuSOFT PortIS package for data analysis and portal management
Processing of signals from all sensors
Analysis and development of measured data
Management of portal gateway parameter settings
Self-diagnostic functions of the portal gate
Management of setting of alarms and detection limits
Traffic management
Display of recorded data
Report system and passage database
Includes
2 x 40 L scintillation detector, Control unit with a sound and a visual alarm, Lead shielding - 10mm thick, Common user PC with the NuSOFT PortIS (languages included: EN, CZ, FR, IT, SK), Recognition sensors, 2 x poles included
Options
2x camera - ID plate reading, Additional detectors
