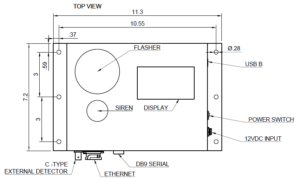

Area Monitor Base Unit Installation Dimensions
The Area Monitor has six convenient mounting holes for wall installation. Before mounting the Area Monitor to the wall, make sure that the 6 ft. power converter cord will reach the nearest power outlet. (50/60Hz 120V/240V AC outlet)
Area Monitor Remote Alarm Installation Dimensions
The Area Monitor Remote Alarm has six convenient mounting holes for wall installation. Before mounting the Area Monitor Remote Alarm to the wall, make sure that the 6 ft. power converter cord will reach the nearest power outlet. The Remote Alarm connects to the Base Unit via an included 50 ft. DB9 Serial Cable.
Area Monitor External Detector Installation Dimensions
The Area Monitor External Detector has six convenient mounting holes for wall installation. Before mounting the Area Monitor External Detector to the wall, make sure that the 50ft coaxial cable will reach the base unit’s coaxial connection.

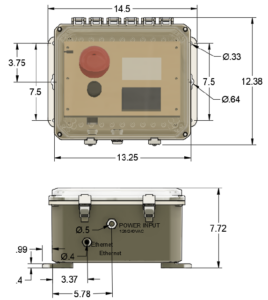

Area Monitor Base Unit NEMA Enclosure Installation Dimensions
The Area Monitor Base Unit NEMA Enclosure has six mounting holes for wall installation. Before mounting the Area Monitor Remote Alarm to the wall, make sure that the appropriate connections can reach the base unit. The Area Monitor NEMA Enclosure has waterproof cable glands that must be used and tightened on the installed cable to ensure water seal. The AC power supply line must be installed by a professional. The AC to DC power converter is located inside the enclosure and must not exceed 240VAC.
Area Monitor External Probe Enclosure Installation Dimensions
The Area Monitor External Probe Enclosure has four convenient mounting holes for wall installation. Before mounting the Area Monitor Remote Alarm to the wall, make sure that the 50ft coaxial cable will reach the base unit’s coaxial connection.
