DolMo Dose and dose rate monitor

NUVIATech Instruments presents the new powerful DolMo product line. In combination with our user oriented accessories, the DolMo product line is the new solution for dose, dose rate and contamination measurements.
The compact measurement devices are the ideal instruments for your daily work operations.

Extensive portfolio of additional detectors for dose rate and contamination measurements
• Large, graphic display
• Simultaneous dose and dose rate indication
• Intuitive menu
• User-friendly keyboard
• Torch function
• User-oriented
• IP 65 (according DIN EN 60 529)

• Construction/decommissioning sites • Measuring the ambient dose rate in order to detect leakages or the presence of dangerous materials (different sensitivities and ranges available) • Routine surveys and emergency situations • Special tasks when combined with flat detector, corner or pipe detector and any other additional accessories from the chapter Probes and Accessories

Detector type:

The DolMo 0 serves as an indication device for our large portfolio of external contamination and dose rate probes. Extraordinary highlights are the special detectors such as pipe or corner
detectors and the highly sensitive Nal detectors.

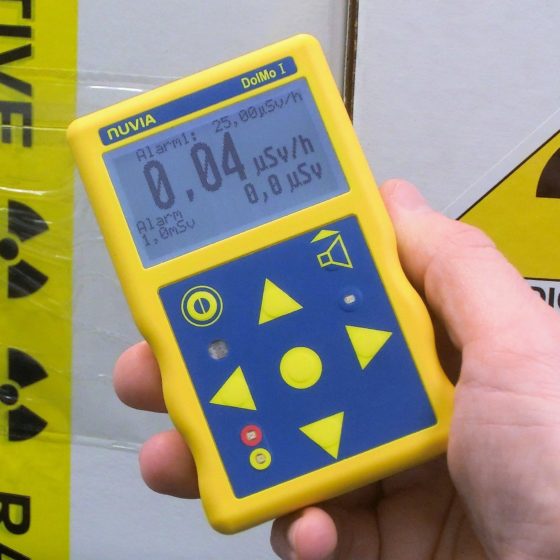

The DolMo I with its integrated GM counter tube is specialized for applications in the low dose rate measurement range of 1 μSv/h up to 100 mSv/h (45 keV – 1,3 MeV). The dose rate is simultaneously displayed to the cumulated dose.
The DolMo II is specialized for applications with a higher dose rate measurement range of 10 μSv/h up to 1 Sv/h (55 keV – 1,3 MeV).
The external detectors can be attached to all versions of the DolMo product line.
Extensive portfolio of probes for dose rate and contamination measurement

Operating Range

Simultaneous display of dose and dose rate
Measuring display in dose rate (Sv/h or rem/h) + dose (Sv/h + Sv or rem/h + rem) or counts per time unit (cps or cpm
Measurement of ambient equivalent dose H*(10)
Measurement of ambient equivalent dose rate H*(10)

Display

Ergonomic housing design with large, illuminated graphic-LCD (128 x 64 pixels

Activity display

Becquerel (Bq, Bq/cm²), Curie (Ci, Ci/cm², Ci/ln²) or disintegrations per minute (dpm, dpm/cm², dpm/ln²), whilst using an external contamination probe

Settings

Settings and measurement parameters are protected by password

Datalogging

Storage of dose, even when switched off or during battery replacement

Alarm:

Adjustable alarm thresholds for dose and dose rate, optical and acoustical alarm. Alarm indication via red and yellow LEDs; both on top and at the front side. Alarm indication via red and yellow LEDs; both on top and at the front side

Individual adjustment for user-specific requirements, e.g. 2 adjustable alarm thresholds for dose rate, 2 adjustable alarm thresholds for cps, adjustable alarm threshold for dose

Temperature Range
-10° to +50°C (14° to 122°F)

Humidity
10% to 70% Non-Condensing.

IP Rating

IP 65 (according DIN EN 60 529)

Size
 (110 x 68 x 30 mm)

Weight
Approx. 270 g, incl. 2 AA-batteries



• Low weight (only approx. 270 g, incl. 2 AA-batteries)

• Compact dimensions (110 x 68 x 30 mm)

• Ergonomic housing design with large, illuminated graphic-LCD (128 x 64 pixels)

• Measuring display in dose rate (Sv/h or rem/h) + dose (Sv/h + Sv or rem/h + rem) or counts per time unit (cps or cpm)

• Activity display in Becquerel (Bq, Bq/cm2), Curie (Ci, Ci/cm2, Ci/ ln2) or disintegrations per minute (dpm, dpm/cm2, dpm/ln2), whilst using an external contamination probe

• Individual adjustment for user-specific requirements, e.g. 2 adjustable alarm thresholds for dose rate, 2 adjustable alarm thresholds for cps, adjustable alarm threshold for dose

• Settings and measurement parameters are protected by password

• Alarm indication via red and yellow LEDs; both on top and at the front side
